Rainbow Pickle

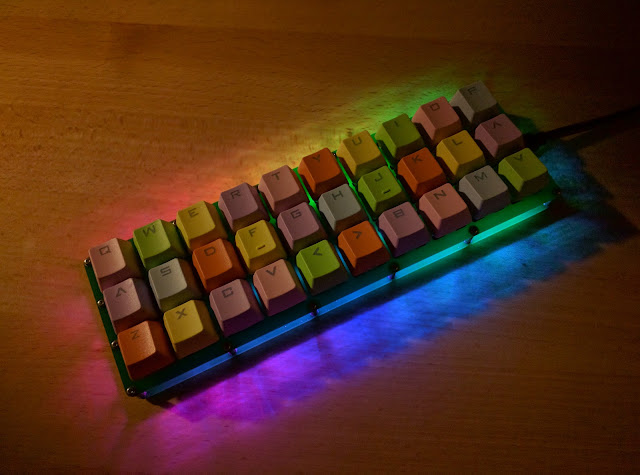

Gherkin with WS2812b RGB LEDs

Would work better with white, instead of green, solder mask.

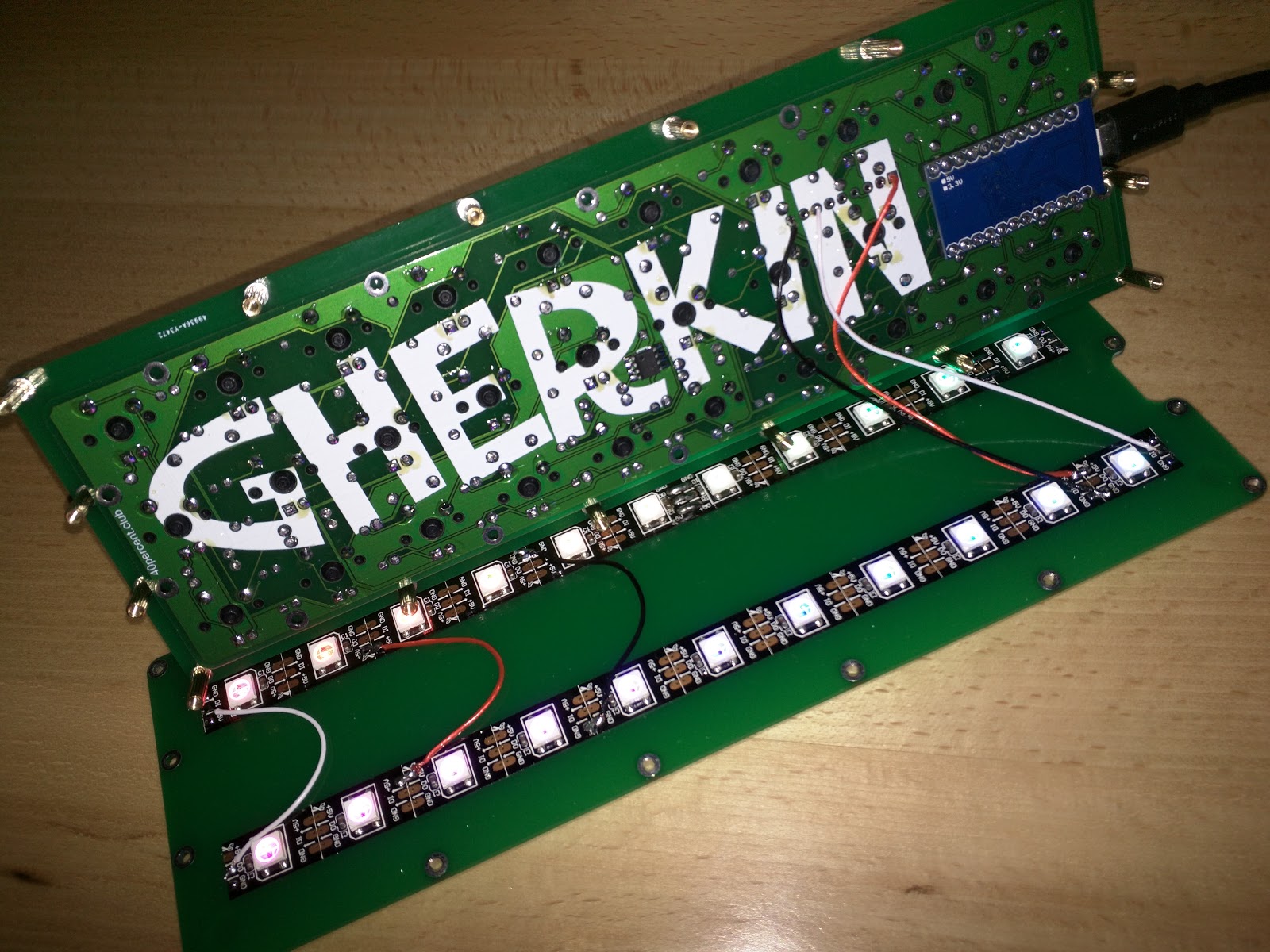

WS2812b strips stuck to bottom plate.

22 LEDs. Draws too much current at full brightness. These are 60/meter, the 30/meter LEDs would work better..

Wiring. Power and ground from header. Data pin is F6.

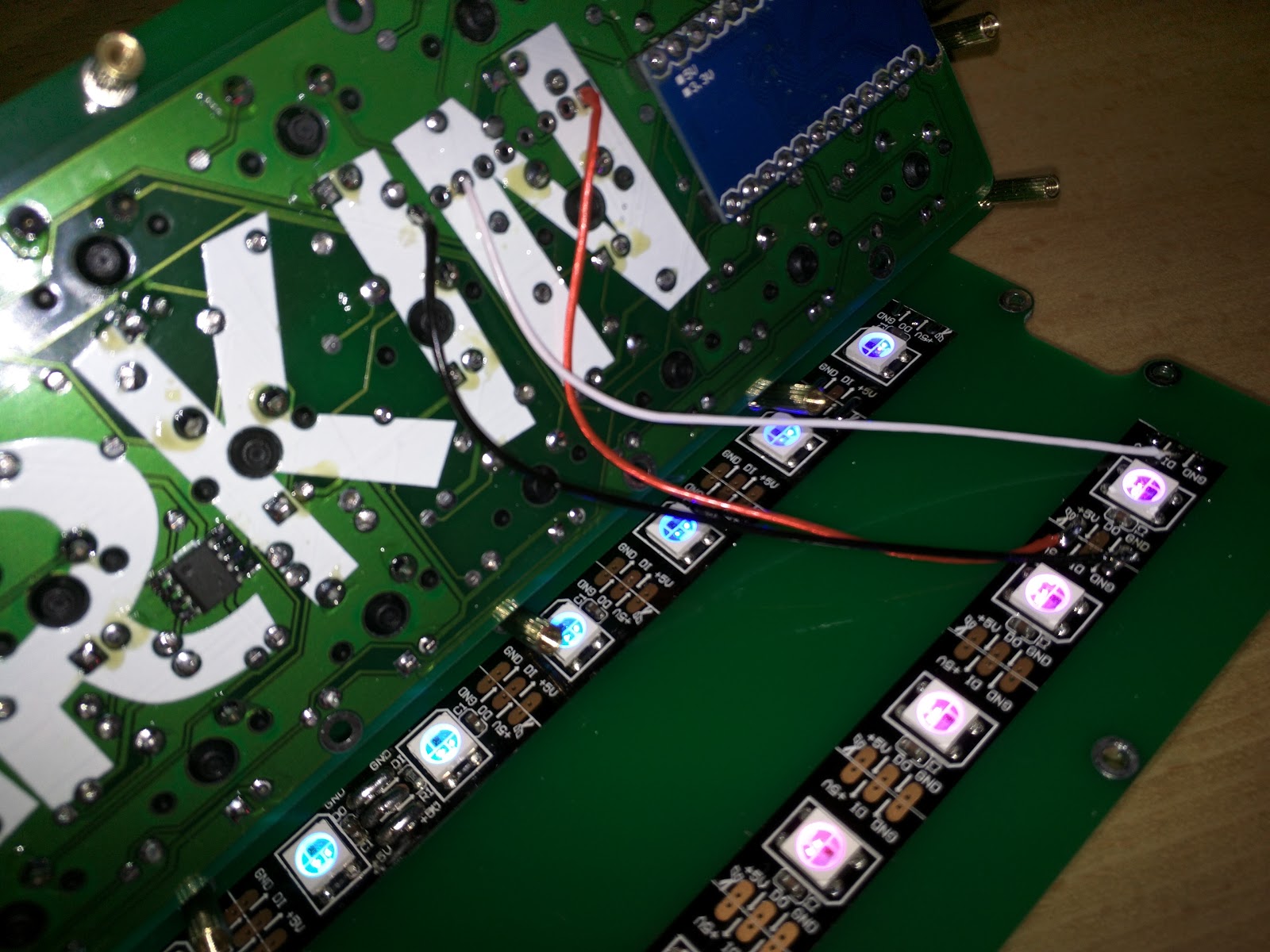

Close up of connection to header.
