Monday, November 14, 2016

Kwark 1.1

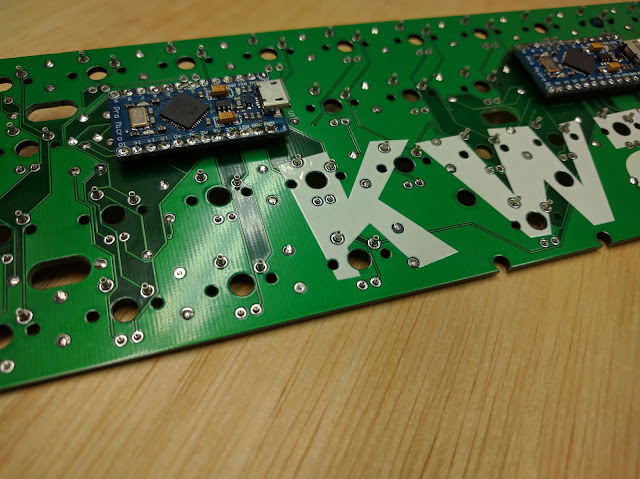

Kwark PCB v1.1 with Holtite compatible holes.

  • Used same parts as described in this post by /u/japanitrat
  • Sockets purchased from Digikey
  • This was a PCB from with HASL finish
  • Switch holes are 60mil and LED holes are 40mil
  • Switch holes fit well, need to be pushed down with something blunt to fully seat
  • LED holes were tight but are secure
Other modifications from the v1 pcb are the enlarged slots and second controller moved up.
